MIDMARK VET PRO

Midmark was looking to expand their offering in the veterinary care market and wanted to launch an industry changing mobile dental delivery cart. The project included end-user research, conceptualization, validation research, prototype, CAD modeling, and support through engineering and production. The VetPro 5000 helped solidify Midmark as the market leader in the veterinary space.

ClientMidmark ServicesResearch, Strategy, Conceptualization, CAD, RenderingYear2010

midmark vet pro medical cart design 17

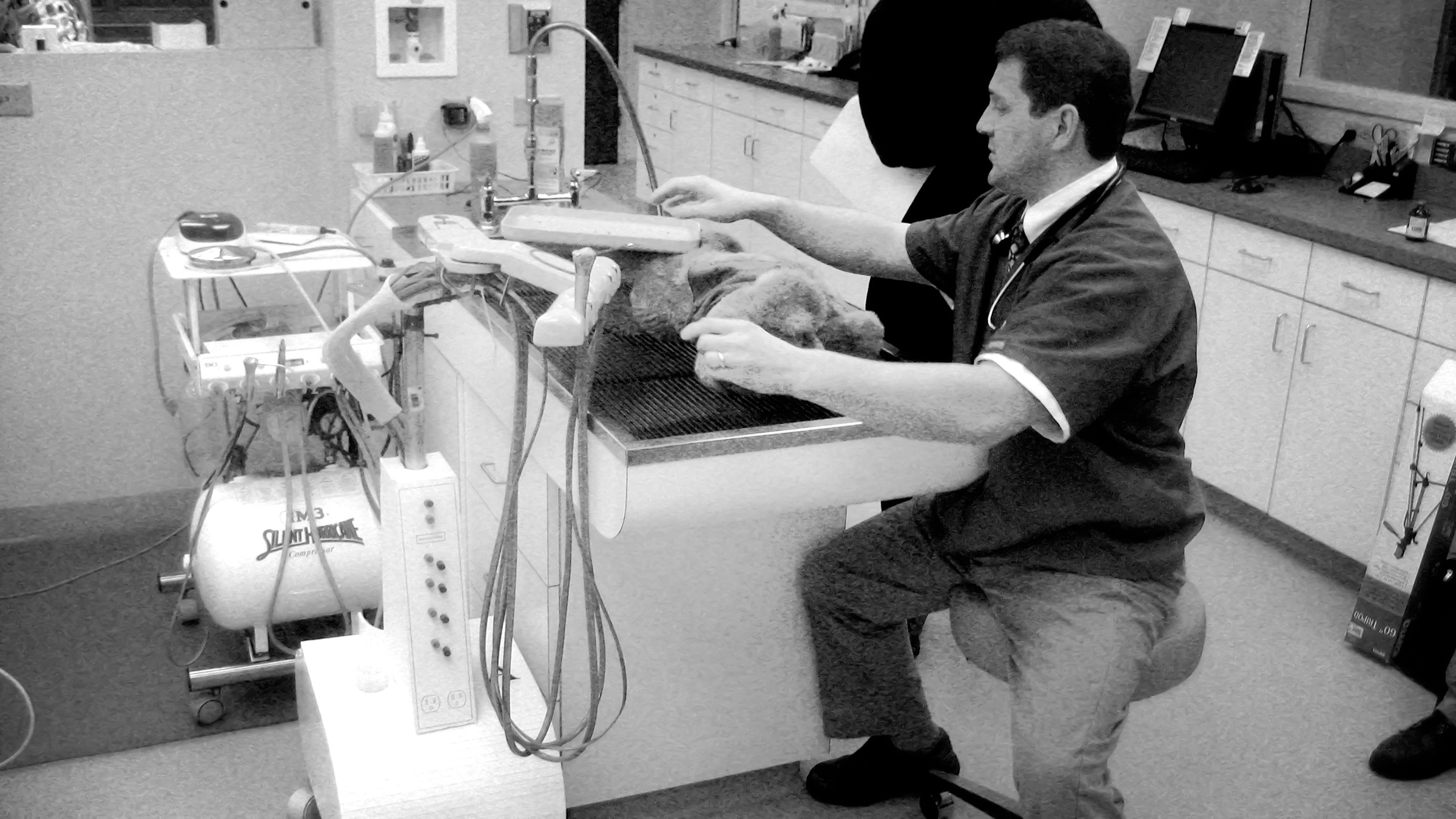

RESEARCH

End-user observation and interviews were conducted at veterinary facilities. Insights into existing products, veterinarian work habits, and daily challenges emerged.

midmark vet pro medical cart design 15
midmark vet pro medical cart design 02 1

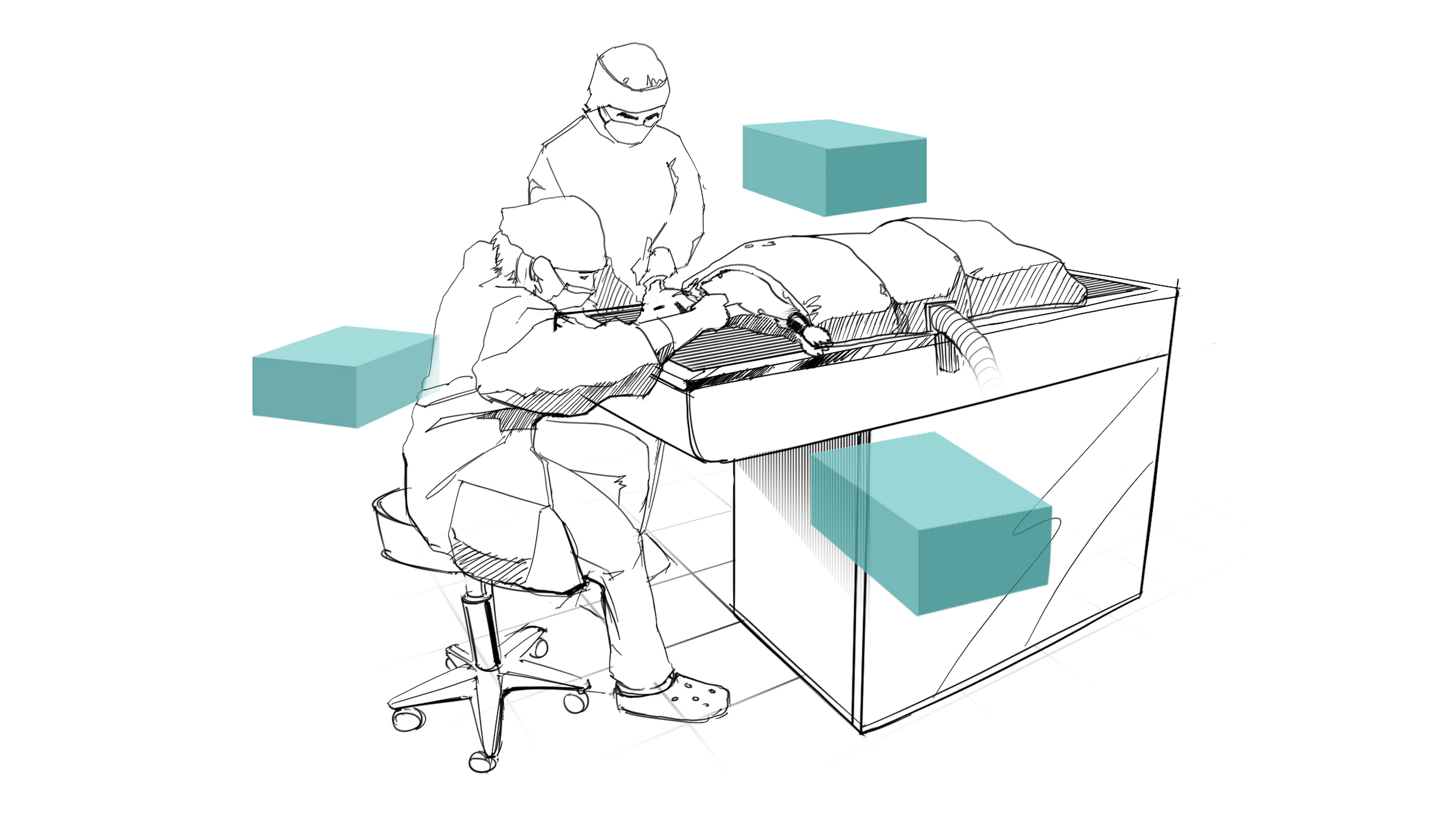

BREADBOARD MODELS

Breadboard models were created to quickly identify the concept platforms that best suited the variety of operating procedures. These models were then taken back to the veterinary facilities to obtain user feedback.

midmark vet pro medical cart design 16
midmark vet pro medical cart design 18

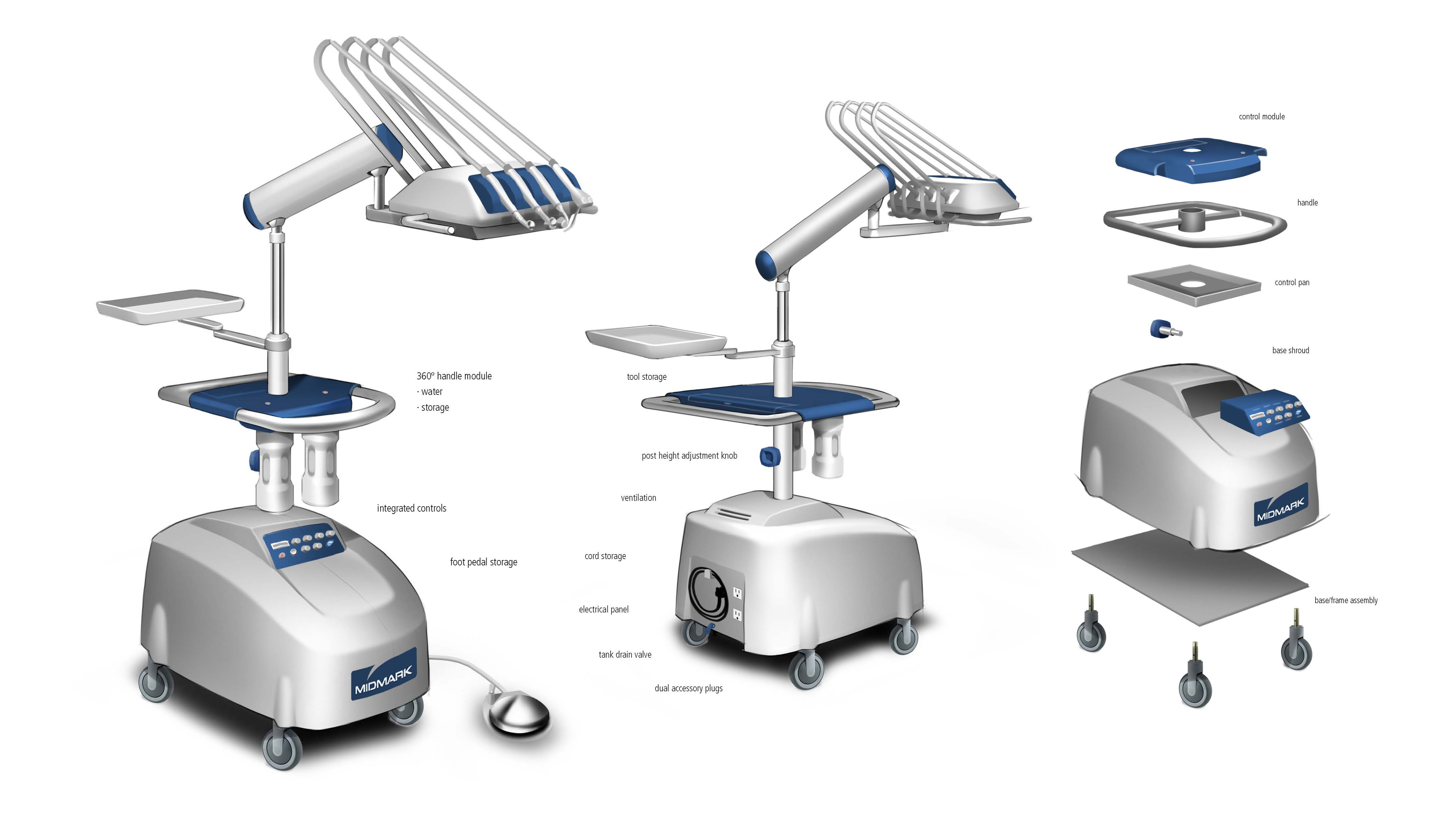

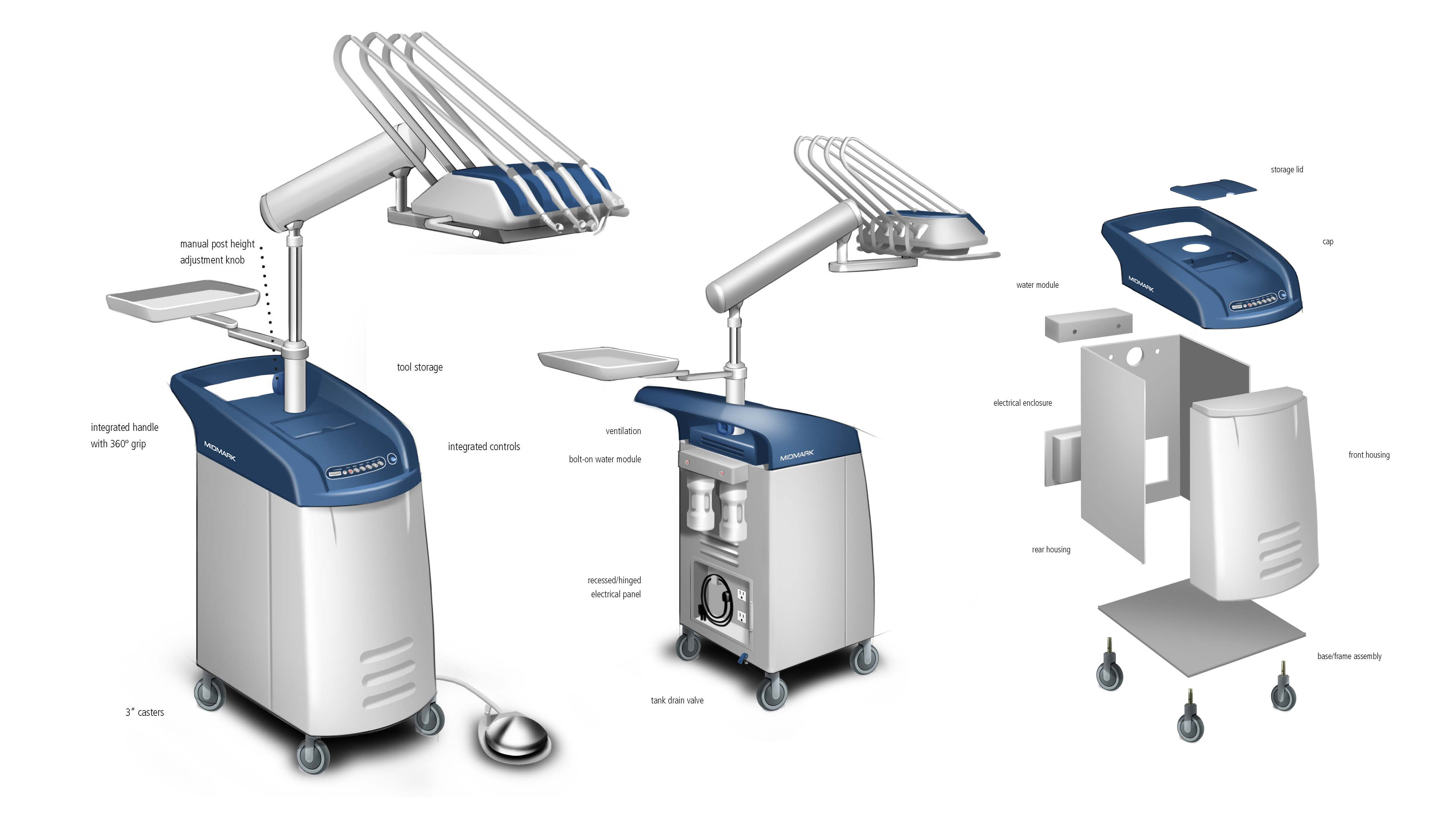

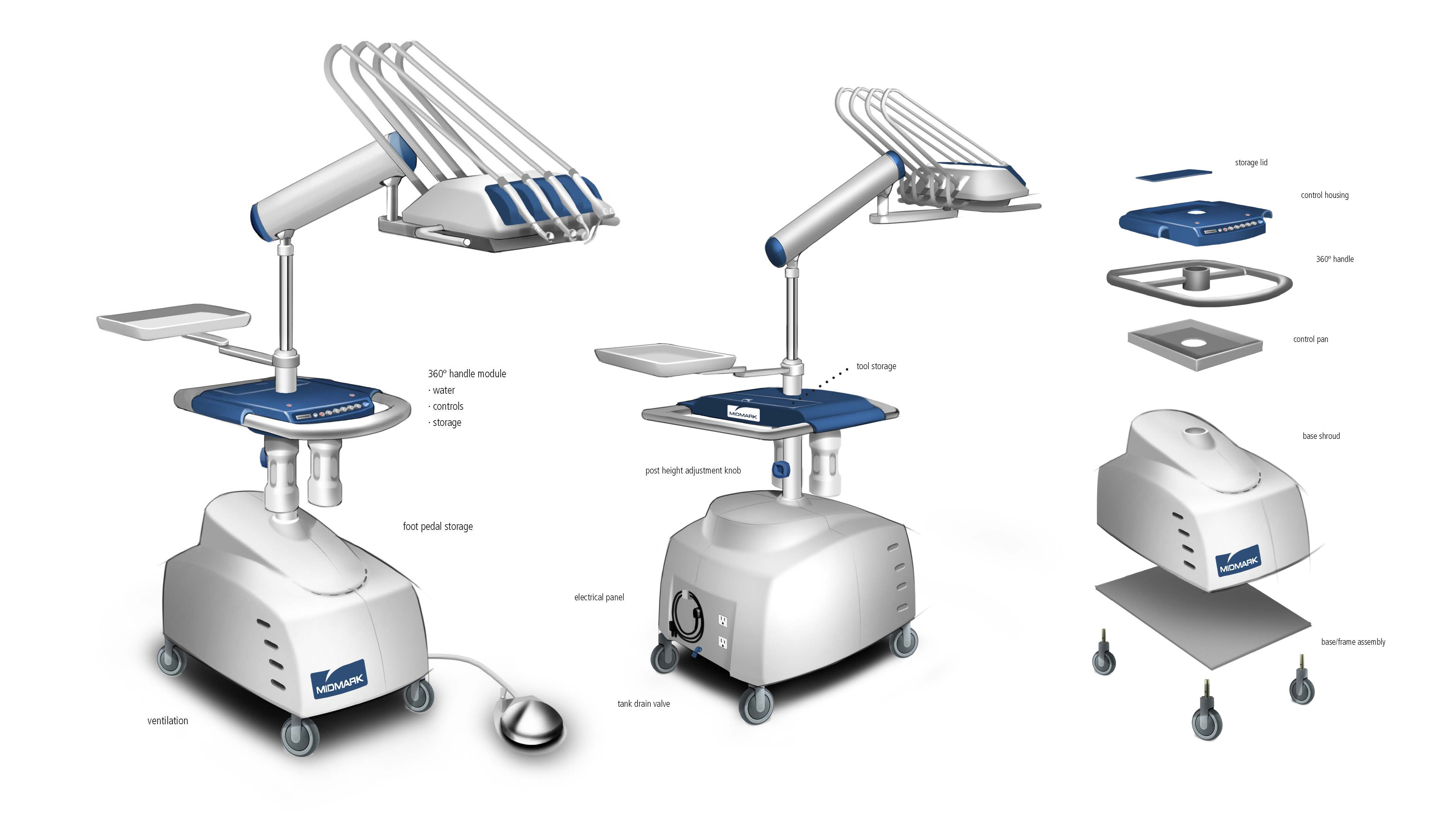

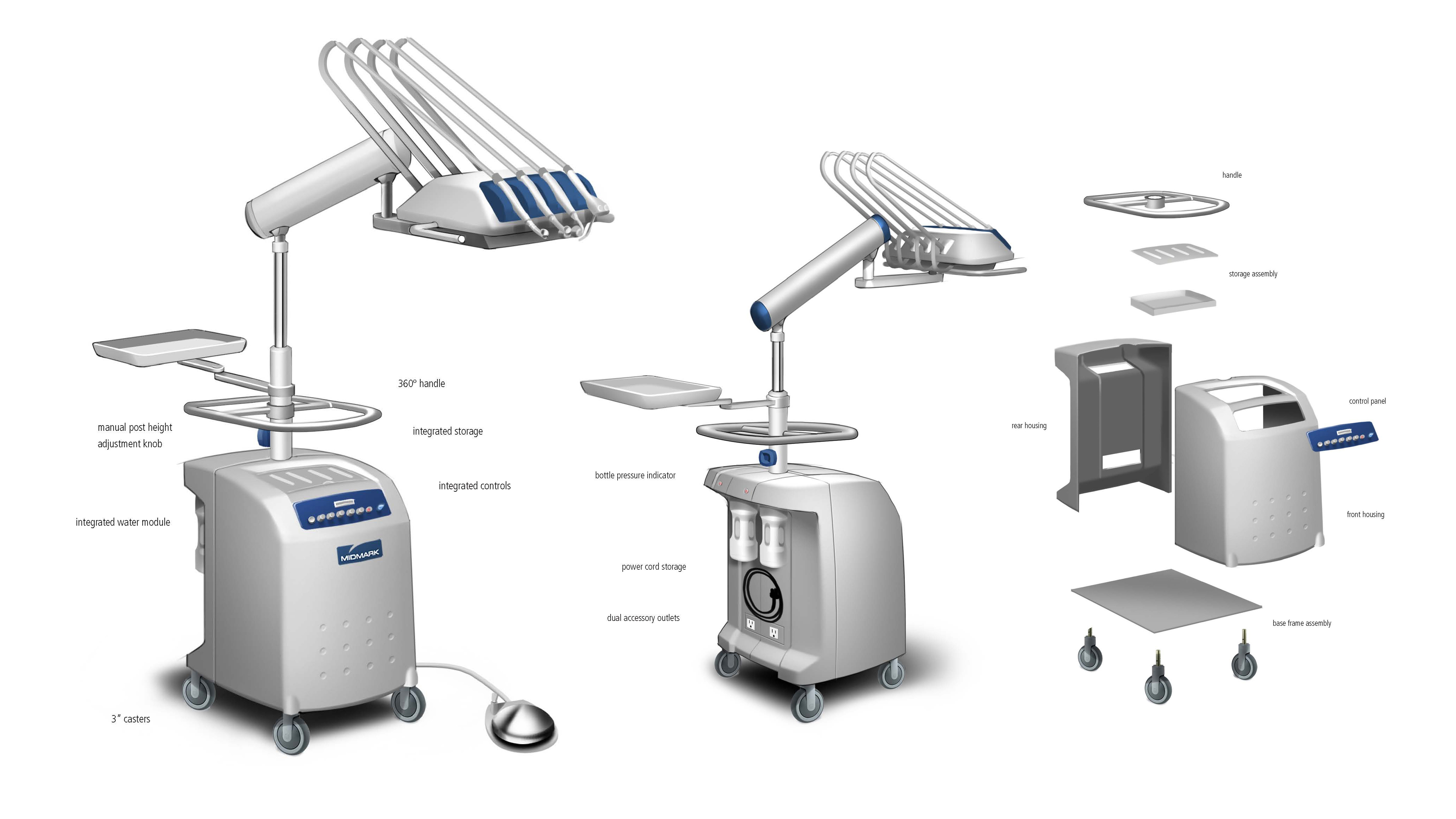

CONCEPTUALIZATION

Concepts centered around the leading breadboard platform. Concept variation explored feature vs. cost tradeoffs, up-front tooling costs vs. increased part costs, and interaction points.

midmark vet pro medical cart design 03
midmark vet pro medical cart design 04
midmark vet pro medical cart design 05
midmark vet pro medical cart design 07

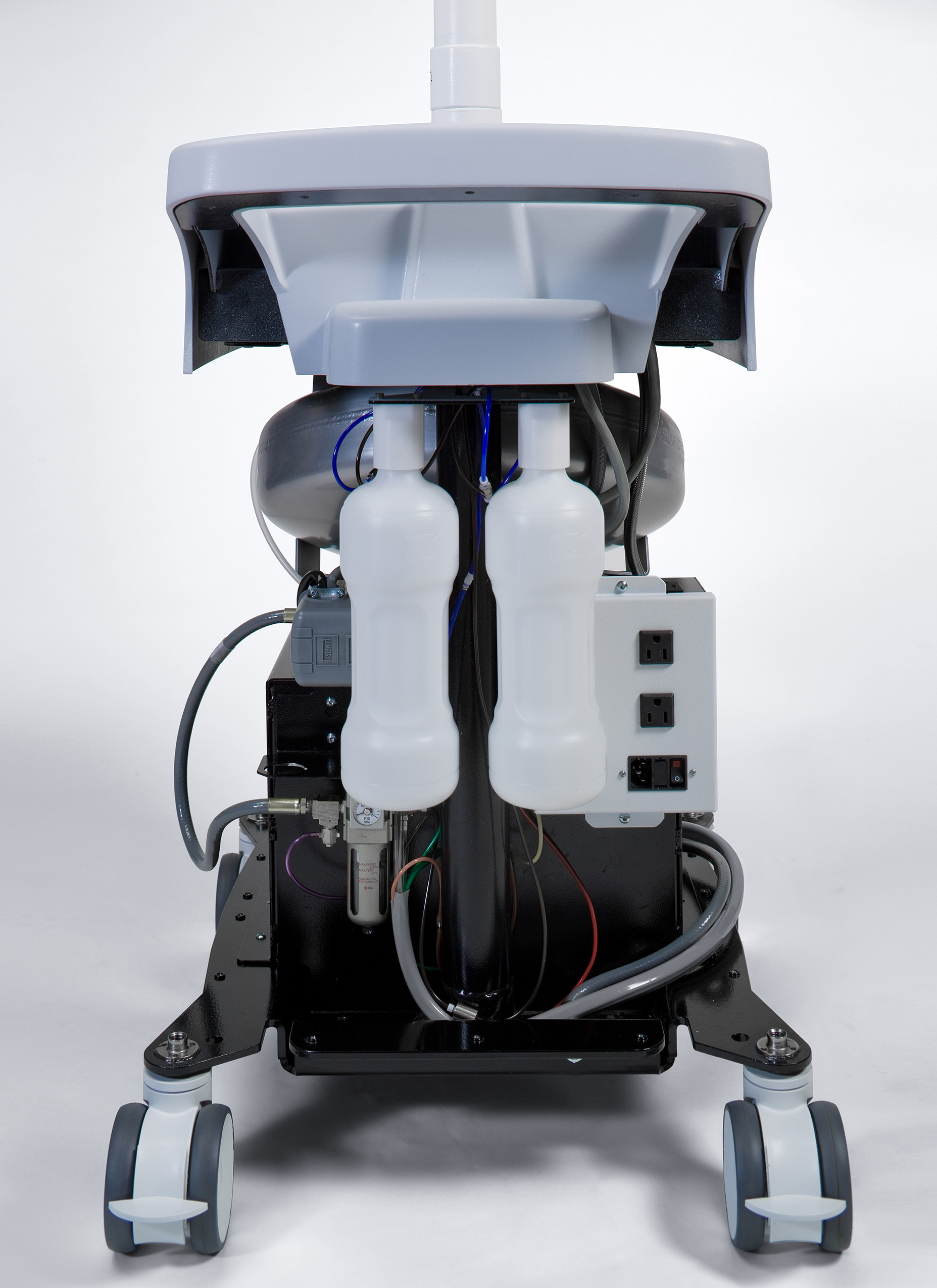

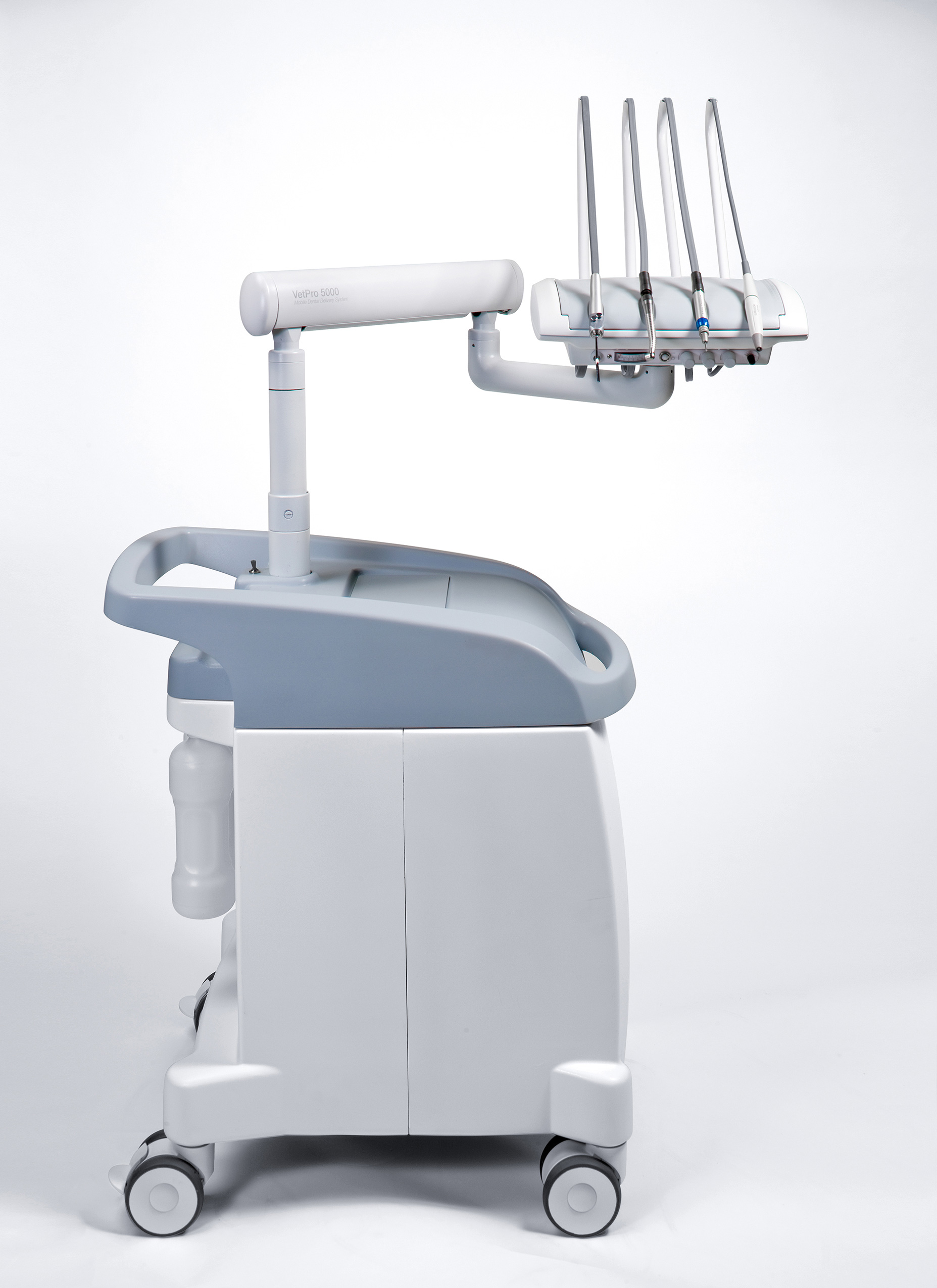

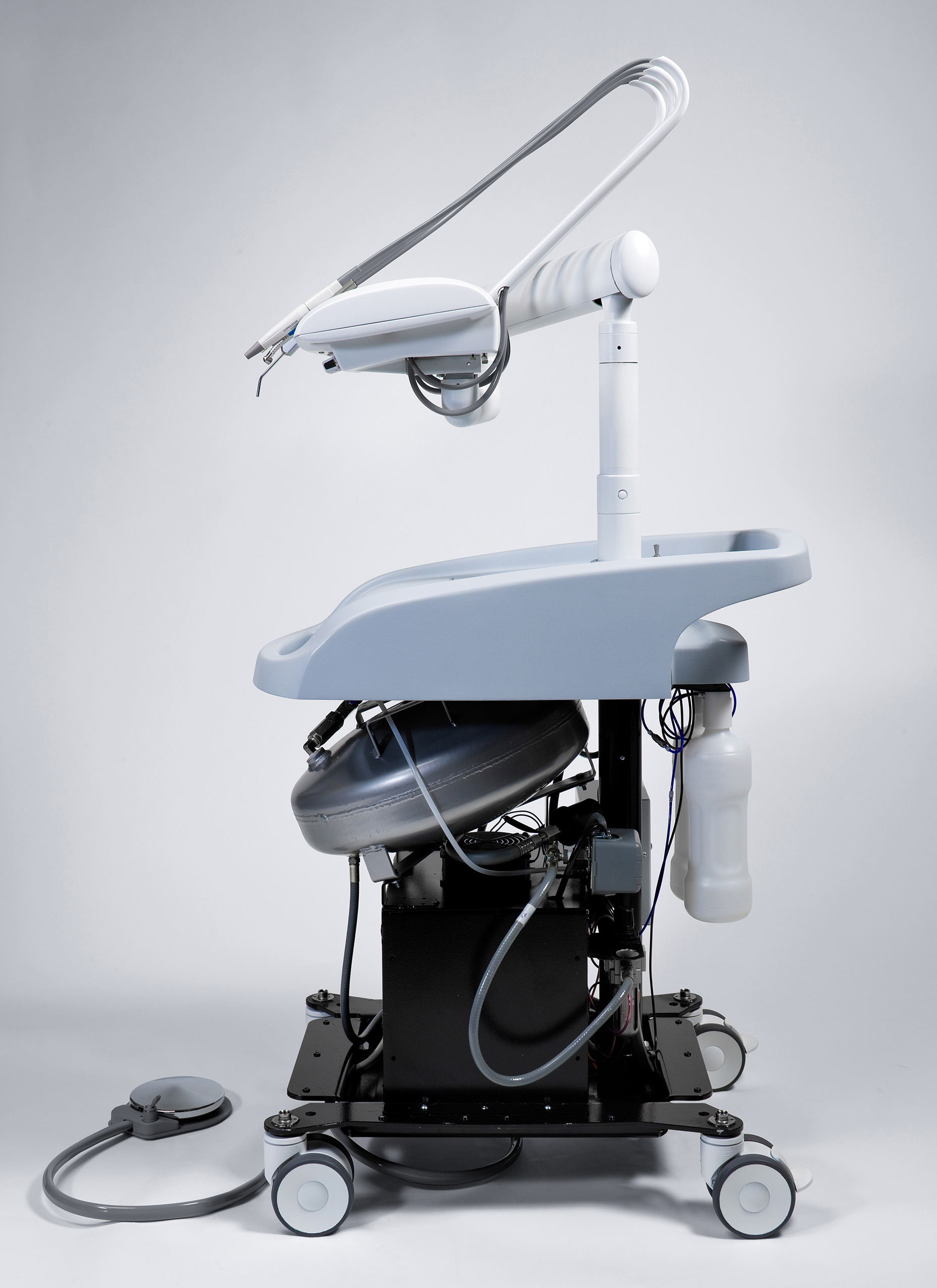

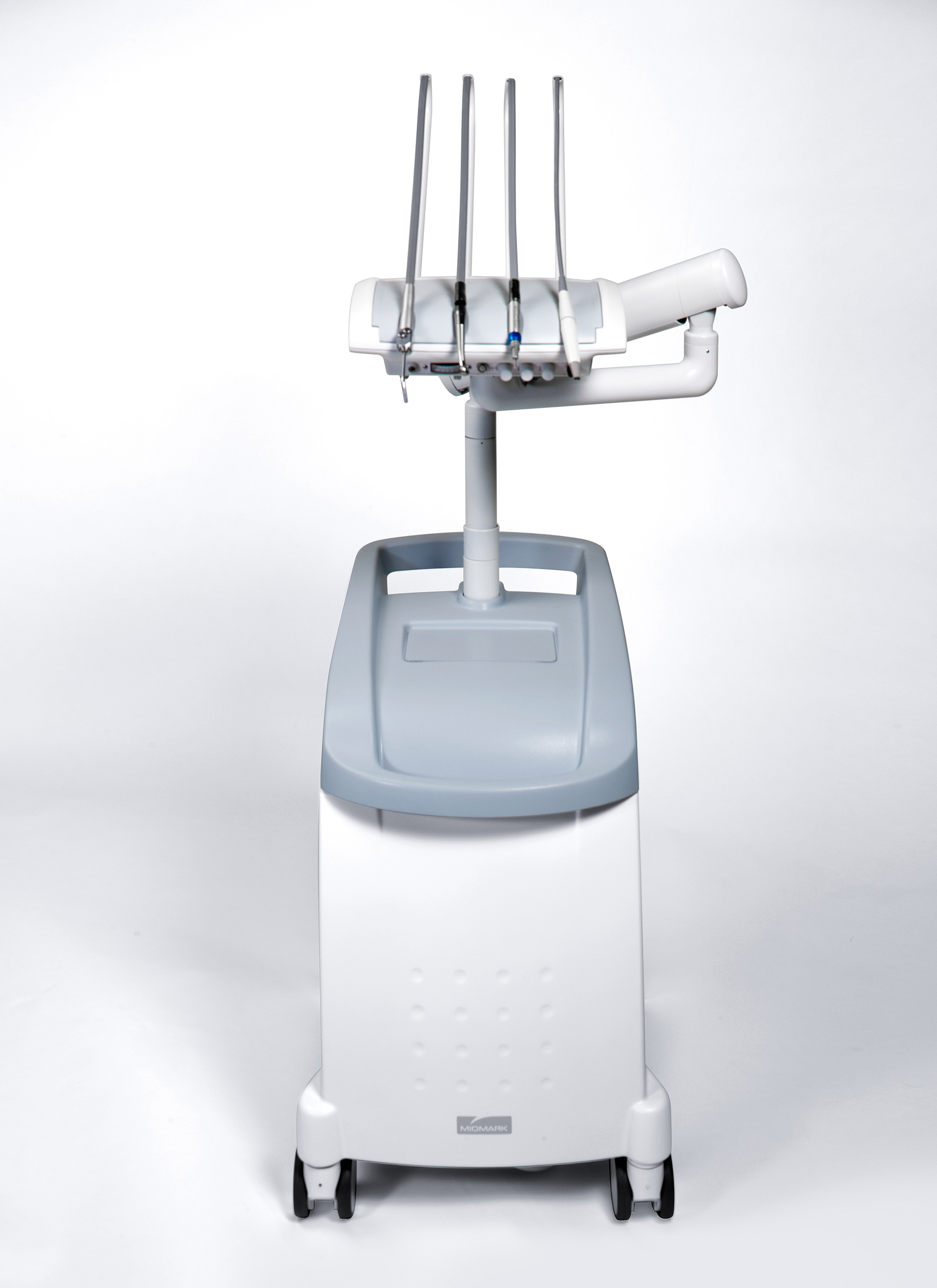

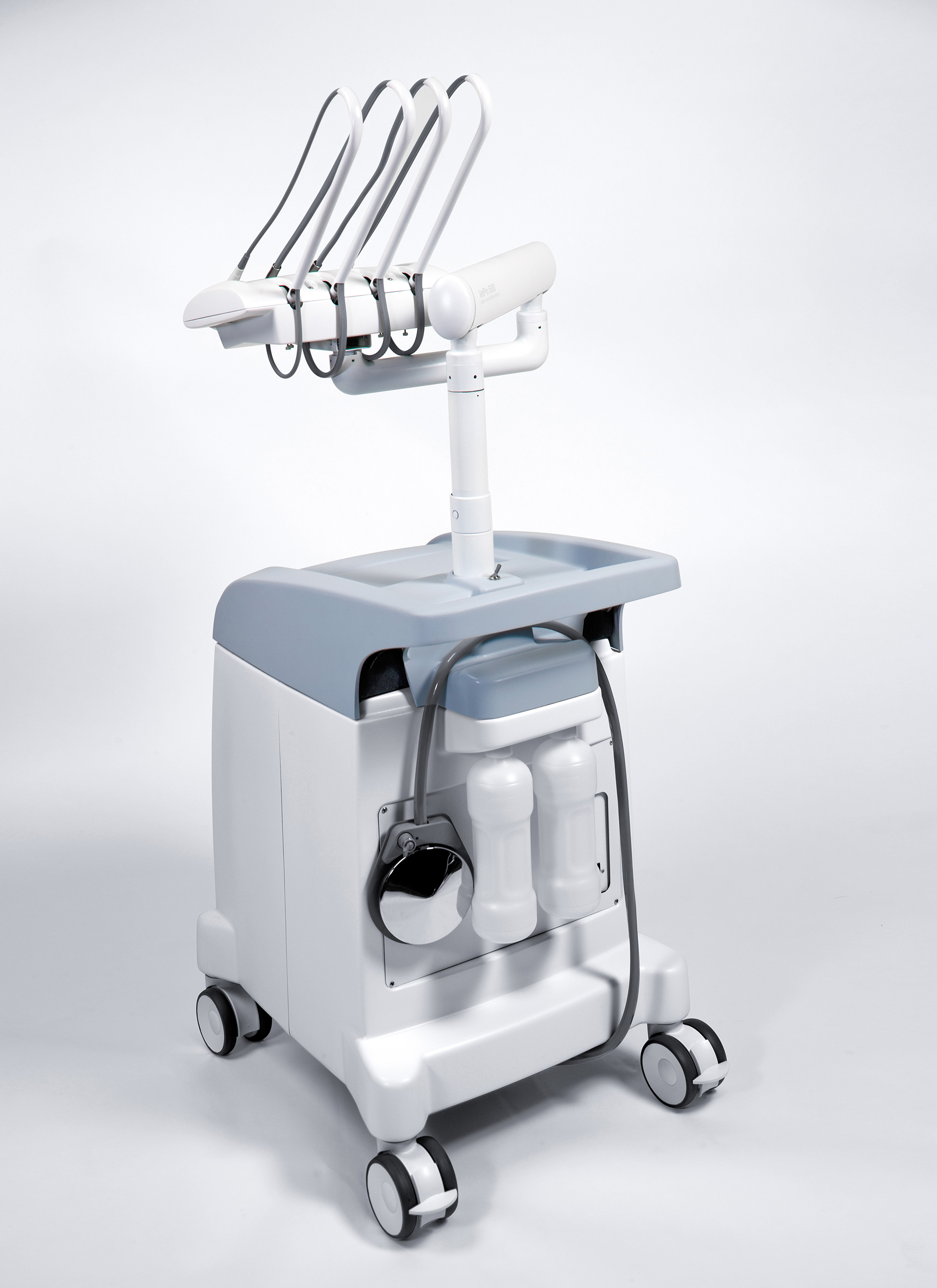

FINAL DIRECTION

Features: hand piece cord management, maneuverable head positioning to accommodate multiple procedure styles, 360° handle molded into the top cover, sound reduction enclosure, and an oil-less compressor.

midmark vet pro medical cart design 09
midmark vet pro medical cart design 11
midmark vet pro medical cart design 13
midmark vet pro medical cart design 10
midmark vet pro medical cart design 12
midmark vet pro medical cart design 14
